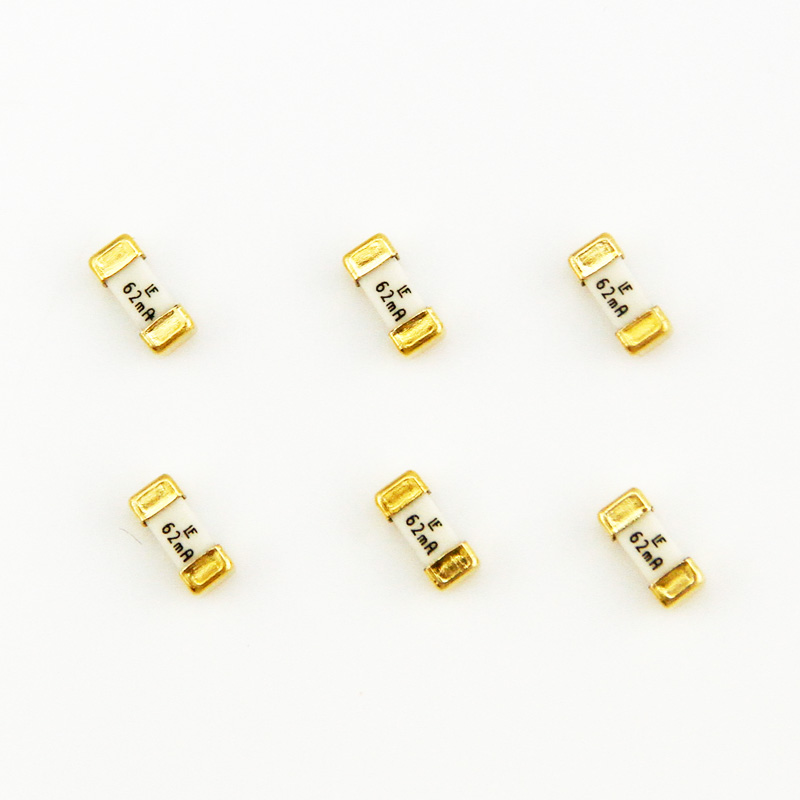

0451.062MRL
Littelfuse力特0451.062MRLNano2 SMF保險絲是一款超小型、方形表面貼裝的保險絲，也可連同表面貼裝保險絲座供貨。 功能與特色: 特快熔斷 尺寸小巧 產品額定電流范圍廣（62mA至15A） 工作溫度范圍廣泛 低溫降額 符合RoHS標準 無鹵素。
| 型號 |
Ampere Rating (A) |
Amp Code |
Max Voltage Rating(V) |
Interrupting Rating |
Nominal Code Resistance (Ohms) |
Nominal Melting I2t(A2sec) |
NomVoltage Drop(mV) |
NomPower Dissipation (W) |
Data Sheet |
|---|---|---|---|---|---|---|---|---|---|
| 0451.125MRL | 0.125 | .125 | 125 | 50 amperes @125VAC/VDC | 1.7000 | 0.00286 |
 |
||
| 0451010.MRL | 10.0 | 010. | 125 | 35 amperes @125 VAC/ 50 amperes @125 VDC 300 | 0.0056 | 26.46 |
|
||
| 0451015.MRL | 15.0 | 015. | 65 | 50 amperes @65 VAC/VDC | 0.0037 | 97.82 |
|
||
| 0451012.MRL | 12.0 | 012. | 65 | 50 amperes @65 VAC/VDC | 0.0049 | 47.97 |
|
||
| 0451008.MRL | 8.00 | 008. | 125 | 50 amperes @125VAC/VDC | 0.0077 | 20.23 |
|
||
| 0451007.MRL | 7.00 | 007. | 125 | 50 amperes @125VAC/VDC | 0.0090 | 10.32 |
|
||
| 045106.3MRL | 6.30 | 06.3 | 125 | 50 amperes @125VAC/VDC | 0.0096 | 9.170 |
|
||
| 0451005.MRL | 5.00 | 005. | 125 | 50 amperes @125VAC/VDC | 0.0125 | 5.566 |
|
||
| 0451004.MRL | 4.00 | 004. | 125 | 50 amperes @125VAC/VDC | 0.0160 | 3.152 |
|
||
| 045102.5MRL | 2.50 | 02.5 | 125 | 50 amperes @125VAC/VDC | 0.0286 | 1.029 |
|
||
| 045103.5MRL | 3.50 | 03.5 | 125 | 50 amperes @125VAC/VDC | 0.0200 | 2.469 |
|
||
| 045103.15MRL | 3.15 | 3.15 | 125 | 50 amperes @125VAC/VDC | 0.0215 | 1.920 |
|
||
| 0451003.MRL | 3.00 | 003. | 125 | 50 amperes @125VAC/VDC | 0.0227 | 1.650 |
|
||
| 0451002.MRL | 2.00 | 002. | 125 | 50 amperes @125VAC/VDC | 0.0367 | 0.530 |
|
||
| 045101.6MRL | 1.60 | 01.6 | 125 | 50 amperes @125VAC/VDC | 0.0580 | 1.060 |
|
||
| 045101.5MRL | 1.50 | 01.5 | 125 | 50 amperes @125VAC/VDC | 0.0630 | 0.853 |
|
||
| 045101.25MRL | 1.25 | 1.25 | 125 | 50 amperes @125VAC/VDC | 0.0780 | 0.664 |
|
||
| 0451001.MRL | 1.00 | 001. | 125 | 50 amperes @125VAC/VDC | 0.1530 | 0.459 |
|
||
| 0451.800MRL | 0.800 | .800 | 125 | 50 amperes @125VAC/VDC | 0.2120 | 0.271 |
|
||
| 0451.750MRL | 0.750 | .750 | 125 | 50 amperes @125VAC/VDC | 0.2450 | 0.185 |
|
||
| 0451.630MRL | 0.630 | .630 | 125 | 50 amperes @125VAC/VDC | 0.3050 | 0.143 |
|
||
| 0451.500MRL | 0.500 | .500 | 125 | 50 amperes @125VAC/VDC | 0.4200 | 0.0795 |
|
||
| 0451.400MRL | 0.400 | .400 | 125 | 50 amperes @125VAC/VDC | 0.5600 | 0.0484 |
|
||
| 0451.375MRL | 0.375 | .375 | 125 | 50 amperes @125VAC/VDC | 0.6100 | 0.0425 |
|
||
| 0451.250MRL | 0.250 | .250 | 125 | 50 amperes @125VAC/VDC | 0.5765 | 0.0158 |
|
||
| 0451.315MRL | 0.315 | .315 | 125 | 50 amperes @125VAC/VDC | 0.3918 | 0.0311 |
|
||
| 0451.200MRL | 0.200 | .200 | 125 | 50 amperes @125VAC/VDC | 0.8372 | 0.0089 |
|
||
| 0451.160MRL | 0.160 | .160 | 125 | 50 amperes @125VAC/VDC | 1.2157 | 0.0048 |
|
||
| 0451.080MRL | 0.080 | .080 | 125 | 50 amperes @125VAC/VDC | 4.0500 | 0.00033 |
|
||
| 0451.062MRL | 0.062 | .062 | 125 | 50amperes@125VAC/VDC | 5.5000 | 0.00019 |
|
||
| 0451.100MRL | 0.100 | .100 | 125 | 50amperes@125VAC/VDC | 3.1000 | 0.00138 |
|
